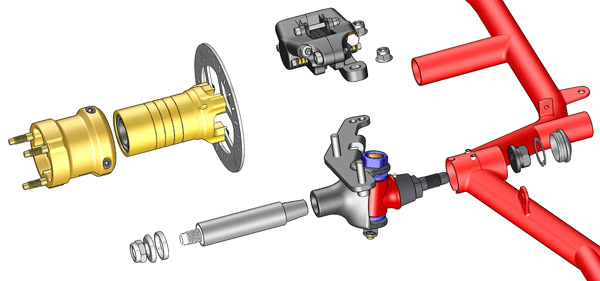

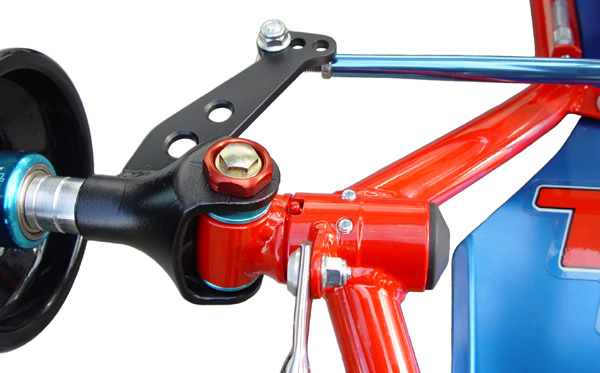

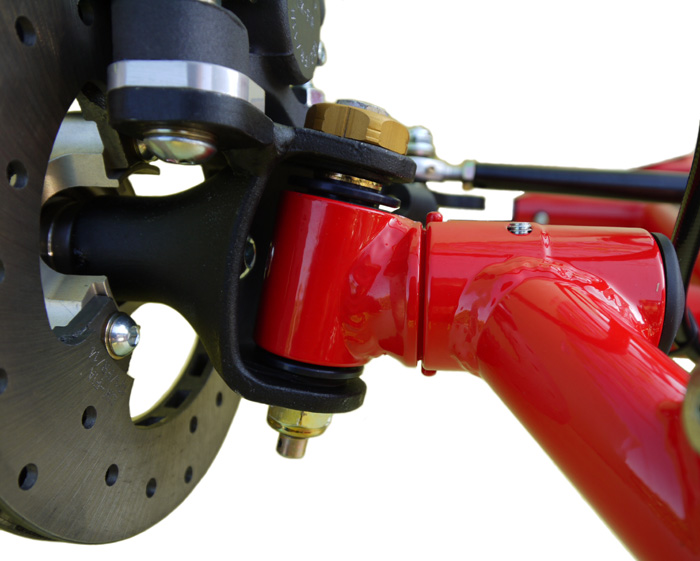

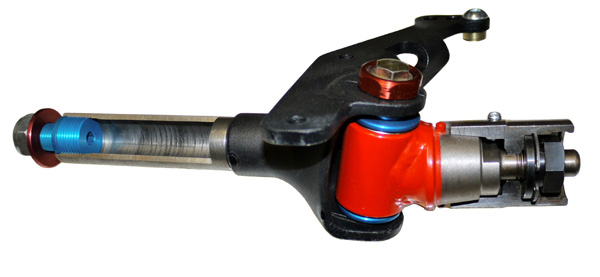

Independent Pivot Tecnology
- Based on our traditional reverse Elliott steering system.

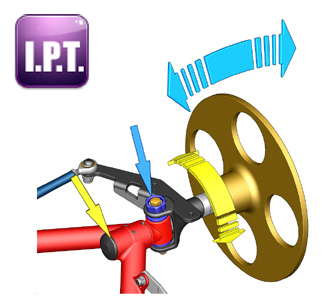

- Caster or camber angle can be changed independentry.
- Camber angle can be adjusted without changing the king-pin angle.

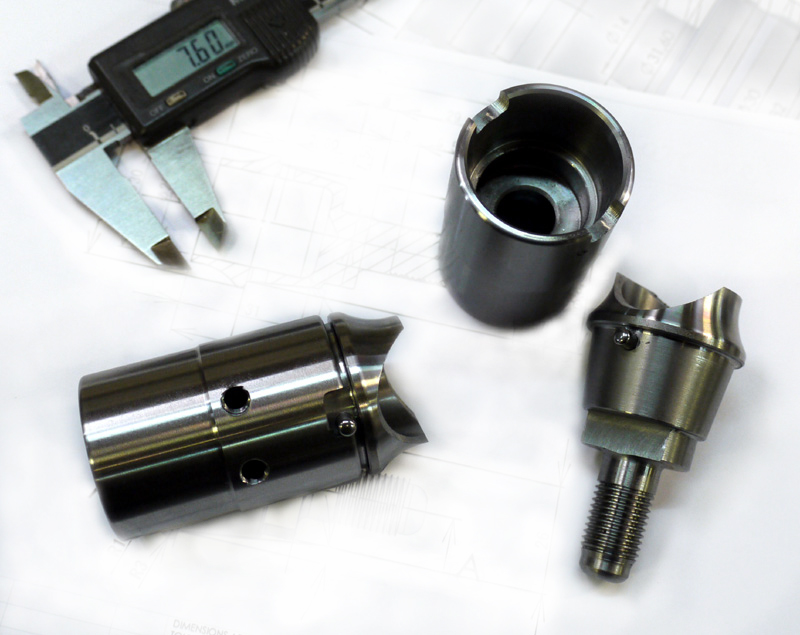

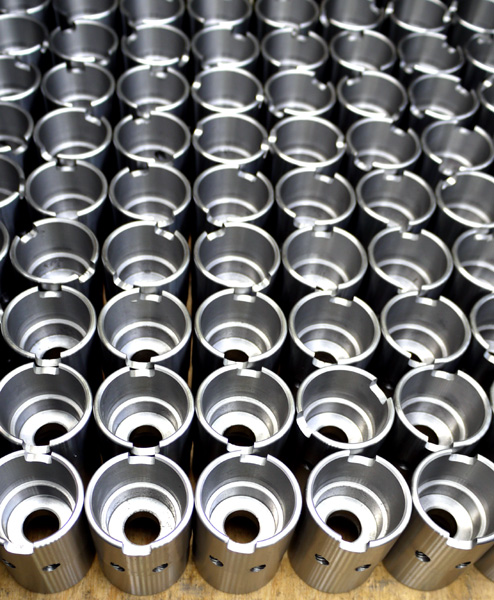

- Light-weght and stiff hollowed caster regulator.
- Cast iron stab-axle body offers high precision and stiffness.
- Quick release regulator lock nut system.
- Micro adjustment with two set screw.
- Range of caster adjustment 18º
- Range of camber adjustment 2º
- 3 position Ackerman giometry.
- ø10mm over sized king-pin and bearings.
- 3 position height adjuster.
- All S30 series
- SS32
- MAX-DD2
- US28
- MINI MAX
- All MINI 95
