US28 - 102
High-performance, cost-efective, entry-level model
- Designed for everyone from competitive racers to beginners
- Assembled like a top-end model
- Can be combined with 4stroke engine and 2stroke air-cooled engine such as YAMAHA KT100

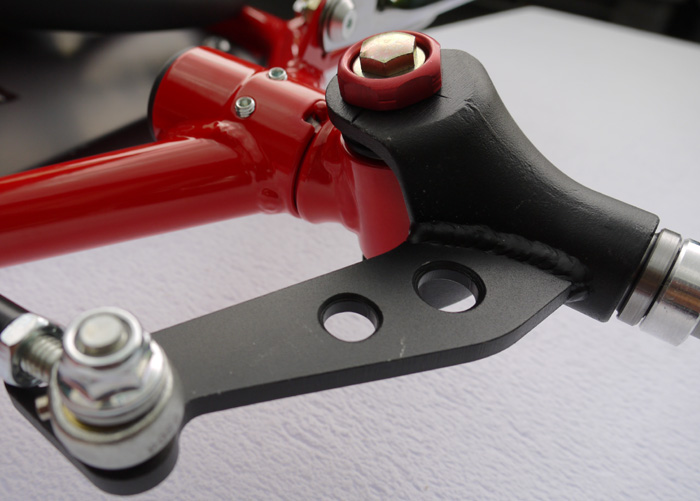

Independent.Pivot.Tecnology or standard Adjustable caster/camber system

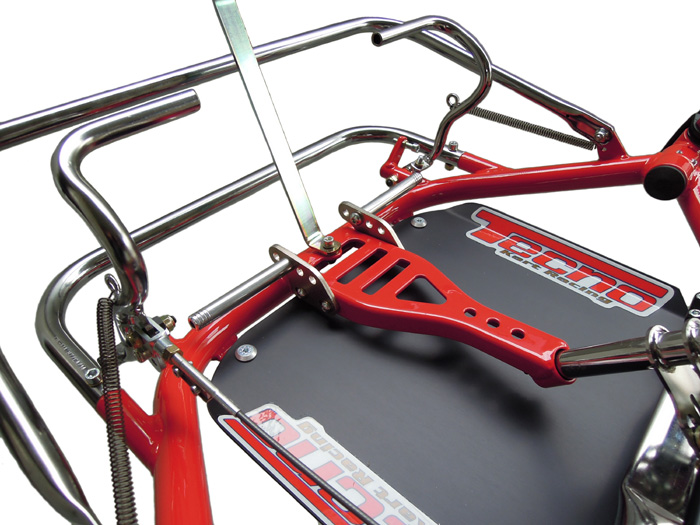

Asymmetric pedals & footrest
- Ø12mm accelerator, Ø14mm brake pedal for better power transfer
- Adjustable independent footrest
- Extra pedal platform for the smaller drivers (option)
Following items not included
- Engine &engine accessories
- Tires
| Main tube | Ø28mm Cr-Mo special selected tube |
|---|---|
| Wheel base | 1020mm |
| Rear axle | Ø50 x 1020mm 2 bearings with height adjustable system CNC machined magnesium alloy bearing & sprocket carrier |

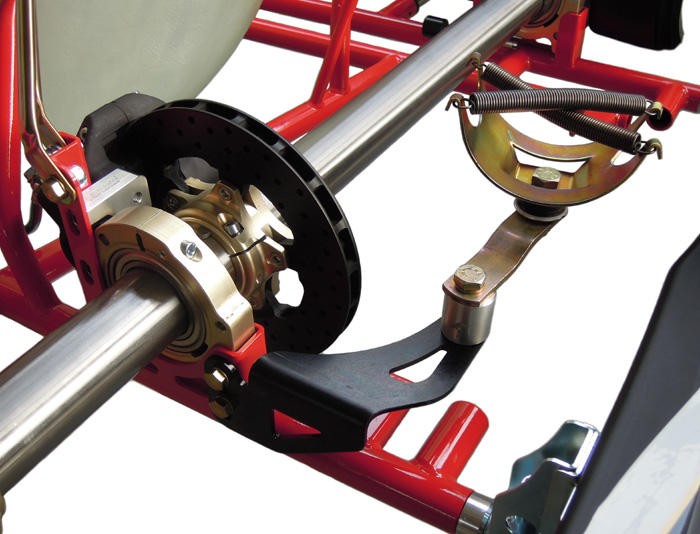

| Brake system | Rear - CIK-FIA homologated FT18 hydraulic foot brake system Ø196x15mm ventilated disc rotor with CNC machined magnesium alloy carrier |
| Wheels | Front- 130mm magnesium alloy wheels Rear- 185mm magnesium alloy wheels |
| Hubs | Front- Ø17mm x75mm aluminium alloy hubs Rear- Ø50mm x 72mm magnesium alloy hubs |
| Body-work | TECNO JET III with sticker set Clob one-piece rear spolier |
| Accessories | 9,6L fuel tank Angled magnesium alloy steering boss Foot rest Low exhaust support |
| Color | Frame / red Body-work / black |
Specifications subject to change without notice.
| Pedals | Extra pedal platform |
|---|---|
| Rear axle | soft / medium / hard |
| Front wheel hub | 60mm / 75mm / 90mm / 105mm |
| Rear wheel hub | Ø50mm x 68mm / 88mm / 108mm / 128mm |
| Frame color | blue /black / gray |
