Asymmetric pedals & Extra pedal platform

split1

Pedals

  • Right side Ø12mm lightweight accelerator pedal.
  • Left side Ø14mm stronger brake pedal.

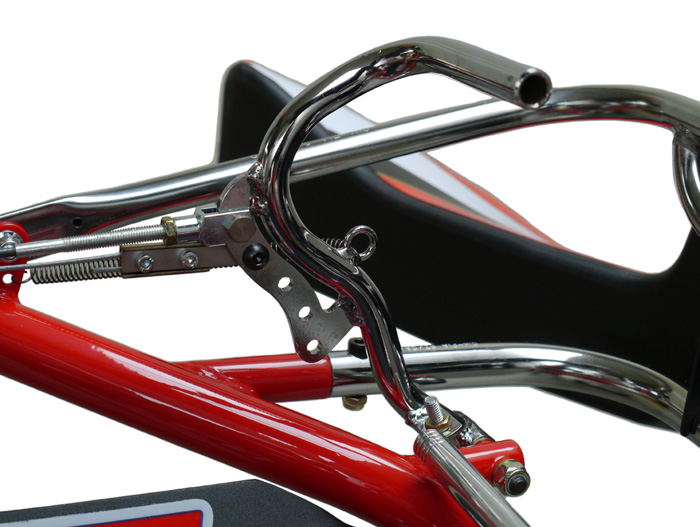

Footrest

  • Side mount on the laminated steering shaft bottom bracket.
  • RH/LH separated smart design.
  • Offer inside lateral support too.
  • Multi position,adjustable length 53mm.
  • Easy maintenance.
  • Good combination with the new side supported pedal.

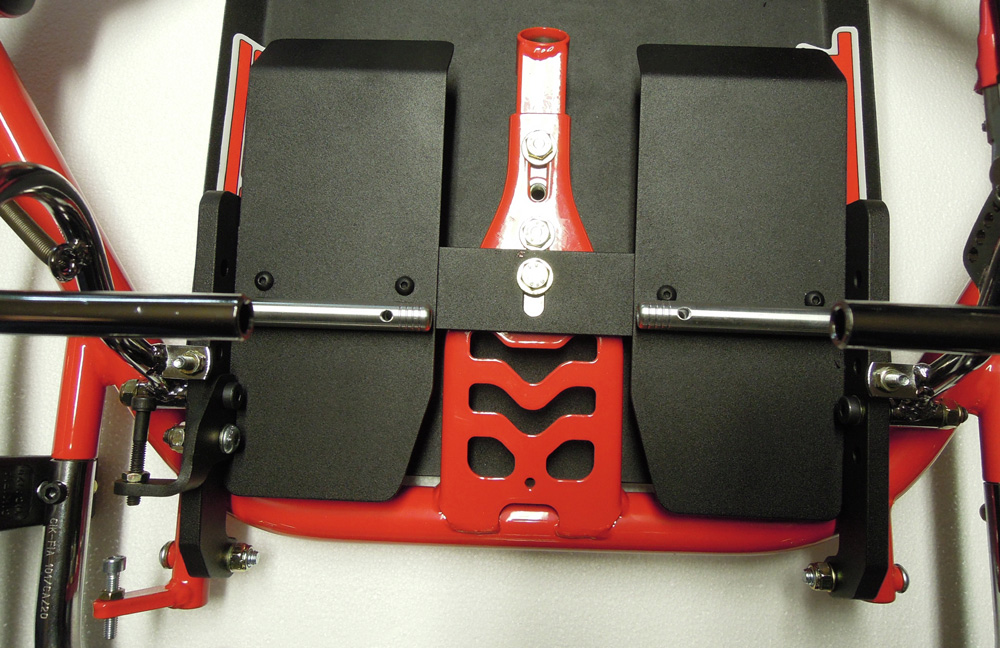

Extra pedal platform for the smaller drivers

  • It provides the short distance from the seat to the pedals.
  • Elevated floor.
  • Solid aluminium conctruction.
  • Easy to set-up.
  • Include footrest.

Pedals

  • Ø12mm steel tube accelerator pedal.
  • Ø14mm steel tube brake pedal.

Footrest

  • AL 6082-T6 bar + steel plate.
  • Weight 238g per pair.
  • Bar length 100mm.

Extra pedal platform

  • 140mm(max) shorter than standard position.
  • 5 pedal positions.
  • Floor dimension : 200 x 100mm each side
  • Floor height : 40mm from the standard floor.

Pedals

  • All S30 series
  • SS32
  • TR30
  • MAX-DD2
  • US28

Footrest

  • All S30 series
  • SS32
  • TR30
  • MAX-DD2
  • US28
  • MINI MAX
  • All MINI 95

Extra pedal platform

  • All S30 series
  • US28
  • MINI MAX
  • All MINI 95
